Multi-Image datasets

Multi-Image datasets consists of image sets, which are images grouped by their filename suffixes. These suffixes need to be specified as Image Groups in the General tab. Learn more about configuring multi image projects in the General Settings section.

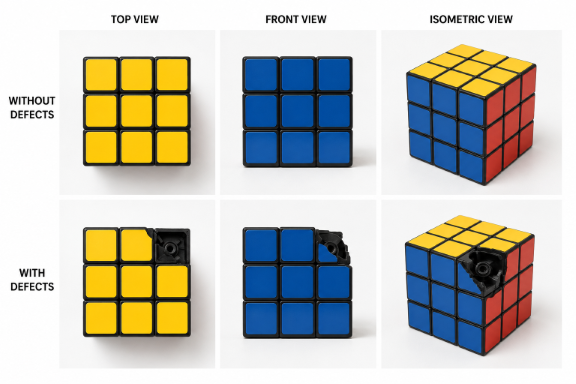

For demonstration purposes these set of images is used along this documentation page:

These images require the Advanced mode because we have different image types and positions.

Setting	Value
Image Types	temp (with defects), ref (without defects)
Image Positions	top, front, isometric
Image Group Mapping	combinations from image types and positions

Annotating

The previewed image in the Dataset tab will be determined from the last image of the overlay order. Annotating works the same as in single-image projects. The key difference is the image list in the bottom right, which lets you switch between the images in each set.

The order of these images is similar to overlay order. The last image, or target, will be displayed by default. The other images are either reference or context images:

Image-Type	Value
(target)	The image the annotation file corresponds to, also used for prediction.
(reference)	Images from the same position, used e.g. for difference detection.
(context)	Images from a different position, supplied to the AI model as context.

If Display annotations in overlays' is disabled, annotations are shown only for the target image.

Inspection

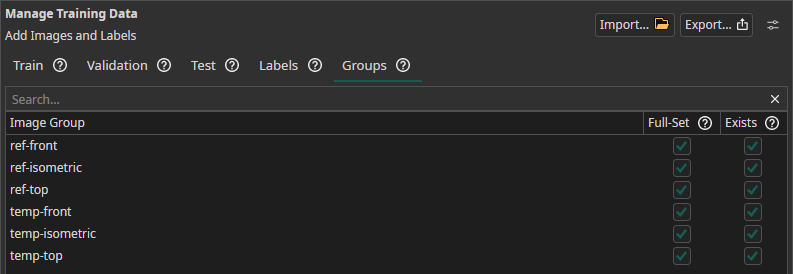

If multi-image is enabled, a new tab appears in the dataset page: The Groups tab. This tab should help users spotting missing images or missing configuration.

Column	Description
Full-Set	Checks if any images of this group are missing in a set. Incomplete Image-Sets are showing an exclamation mark.
Exists	Checks if a filename suffix doesn't exist as configured Image-Group.
